Monitorhøjttalere

XT-5

Farver

Main features

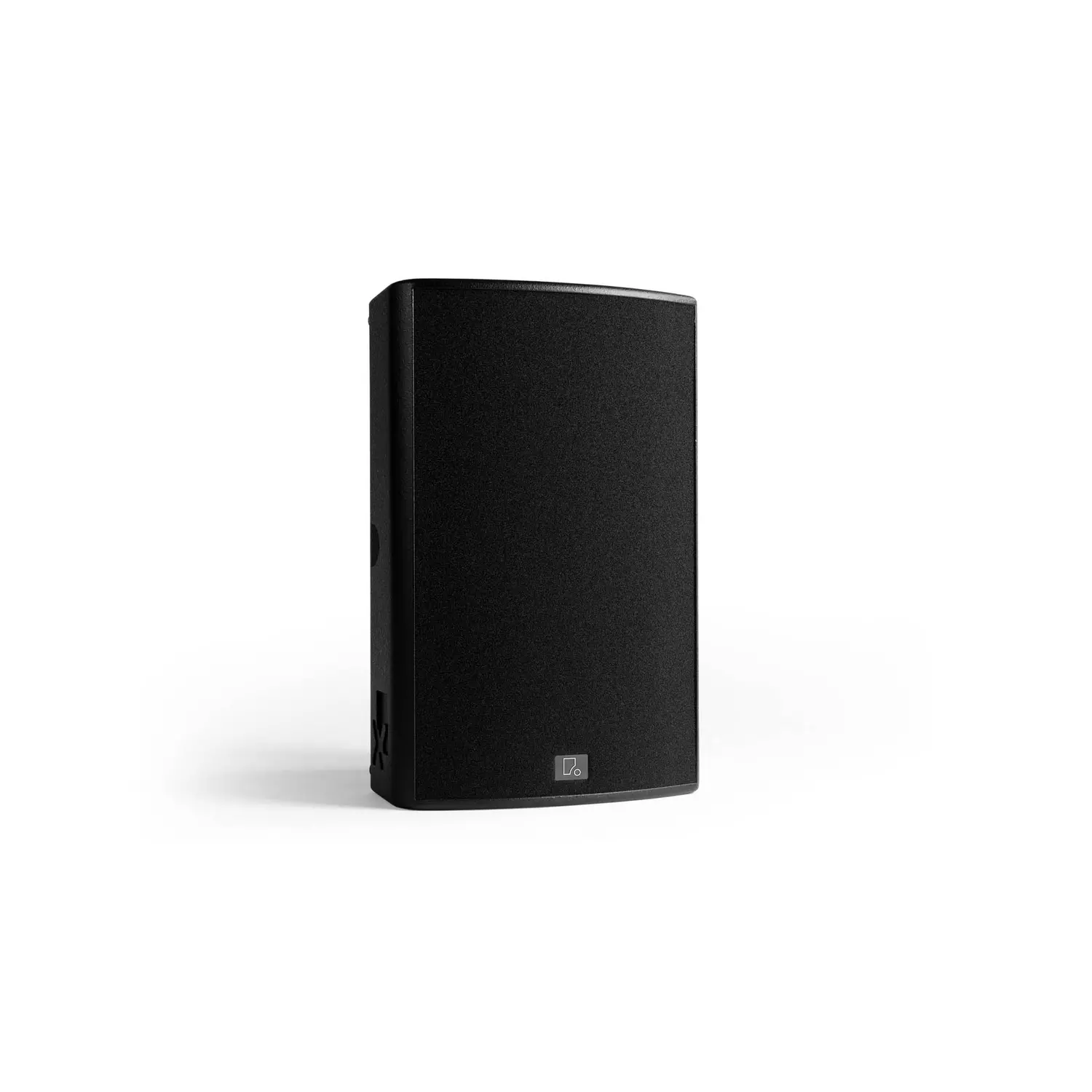

XT-5 er en kraftfuld passiv højttaler til mobil brug. Som alle toppe i X-serien leverer den førsteklasses lyd som fullrange-højttaler, scenemonitor, nearfill eller i et system med Fohhn subwoofere. Det robuste kabinet af multiplex birkekrydsfiner med holdbar lakering er designet til hårde dage på landevejen.

Udstyret med: 15" / 1.4"
Elektronisk højfrekvensbeskyttelse
Nominel effekt: 600 watt
Nominel impedans: 8 ohm
Maks. lydstyrke: 132 dB
Spredning: 80° × 50° (H × V)

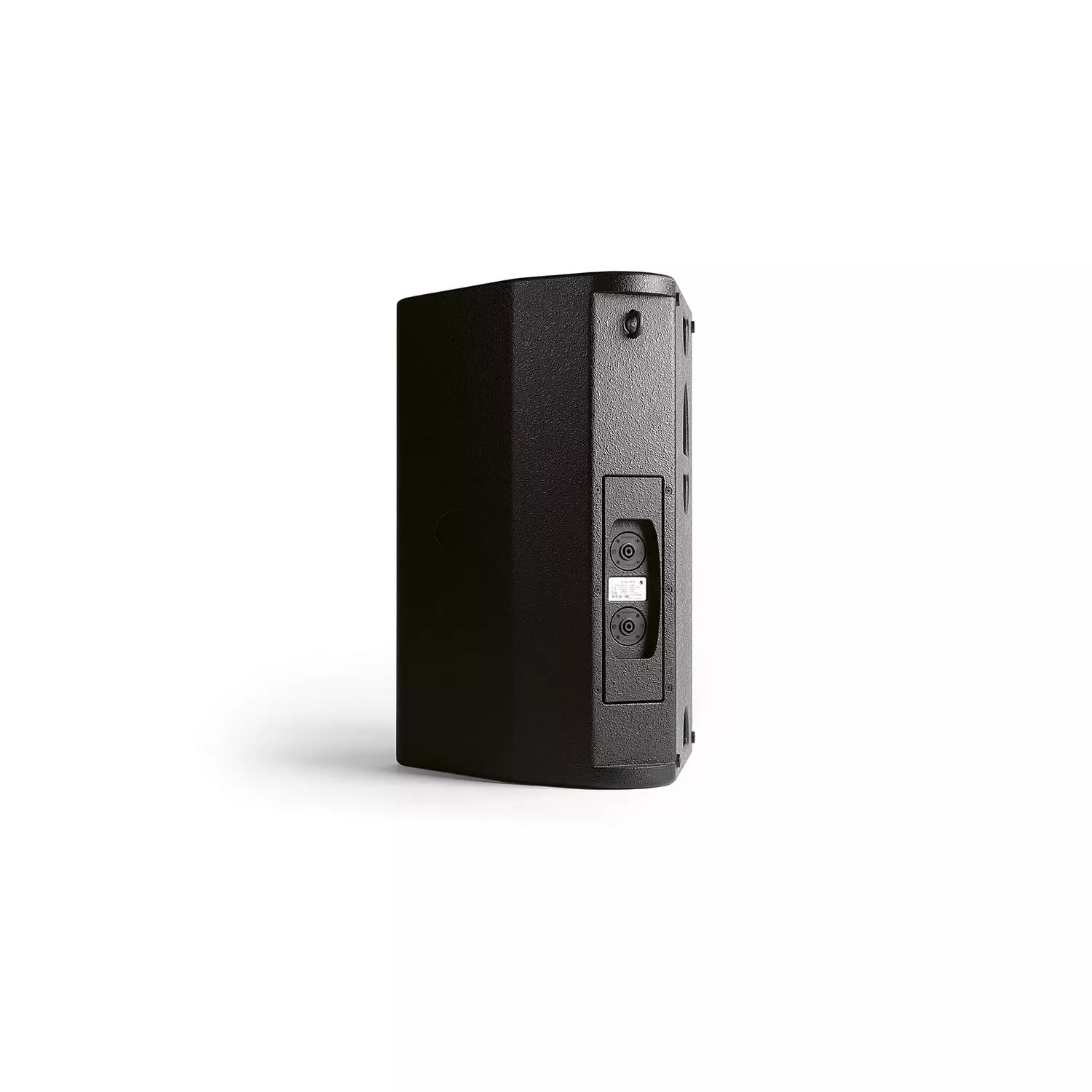

Tilslutninger: 4 × Speakon
Indbygget flangemontering og sikkerhedsøjebolt
Fås i RAL Classic-, NCS- eller Pantone-farver på forspørgsel
Kan fås med vejrbestandig PU-belægning
Alsidigt tilbehør til mobil brug
For at sikre optimal ydeevne og driftssikkerhed er det nødvendigt med Fohhn systemforstærkere med den korrekte højttalerindstilling.

Varenummer: 1611-XXXXX

Downloads

Downloads XT-5

ZIP-arkiv

EU-overensstemmelseserklæring

Tekniske data

Technical data

Physical features

enclosure

multiplex birch plywood

dimensions (w × h × d)

457 mm × 701 mm × 495 mm

weight

27 kg

front design

acoustic foam in enclosure color

standard colors

black (RAL 9005), white (RAL 9016)

coating

textured coating, polyurethane

connectors

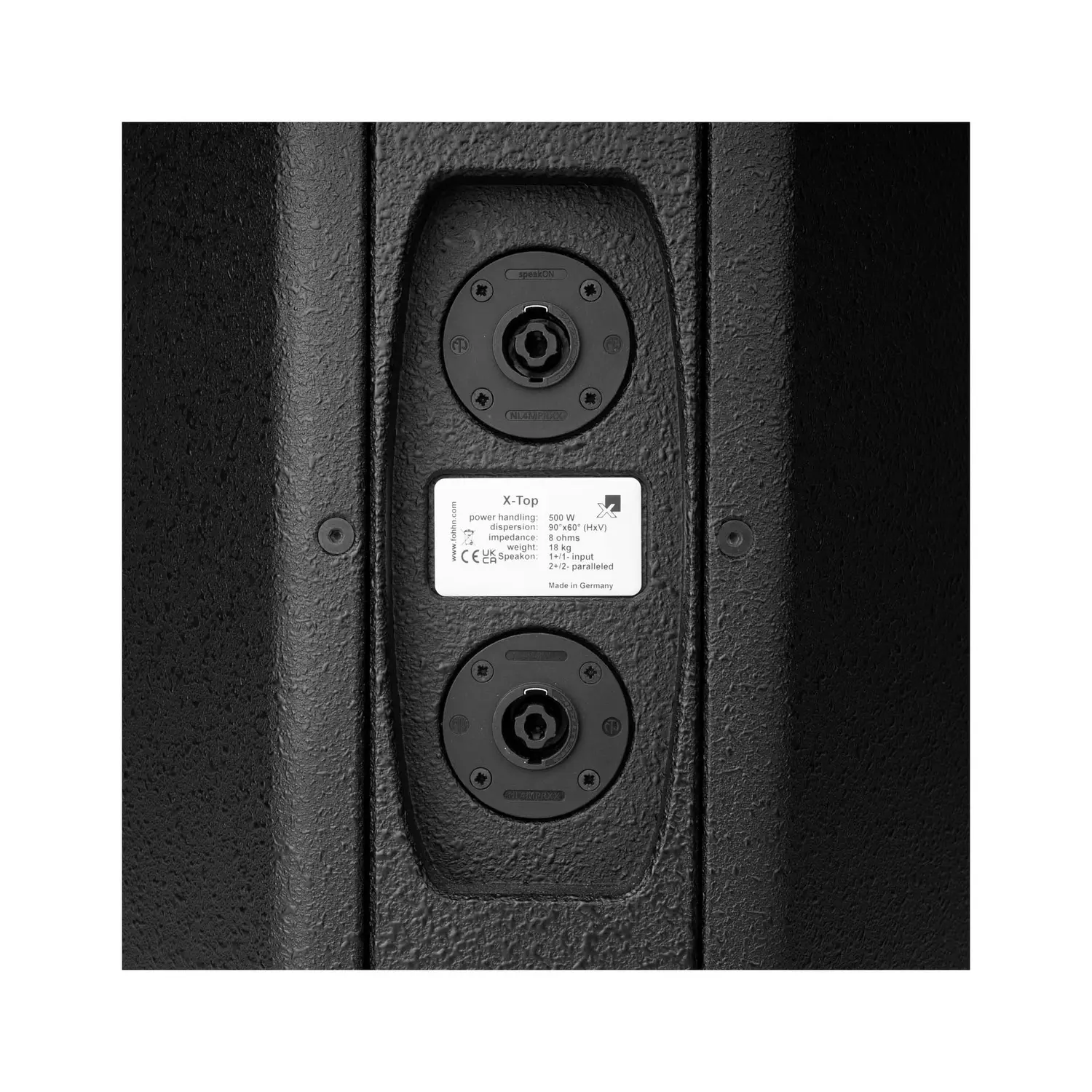

4 × Speakon NL4

mounting points

mounting threads for U-bracket, safety-eyelet on the back

ring stud for safety

yes

angle for monitor set-up

45 °

pole mount socket

36 mm diameter

handles

yes

Electroacoustic features

Environmental conditions

Optional features

CAAD simulation data

weight: net weight without optional equipment
power rating (nominal): according to IEC 60268-5 (long term)
power rating (peak): peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range, with speaker preset
SPLmax: peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range, with speaker preset
frequency range: −10 dB under anechoic half-space conditions, with speaker preset
nominal dispersion: −6 dB compared to the main dispersion axis, averaged 1 – 4 k
sensitivity: 2.83 V at 8 Ω (2 V at 4 Ω, 4 V at 16 Ω) at a distance of 1 m under anechoic full-space conditions
