Subwoofere

LS-2

Farver

Main features

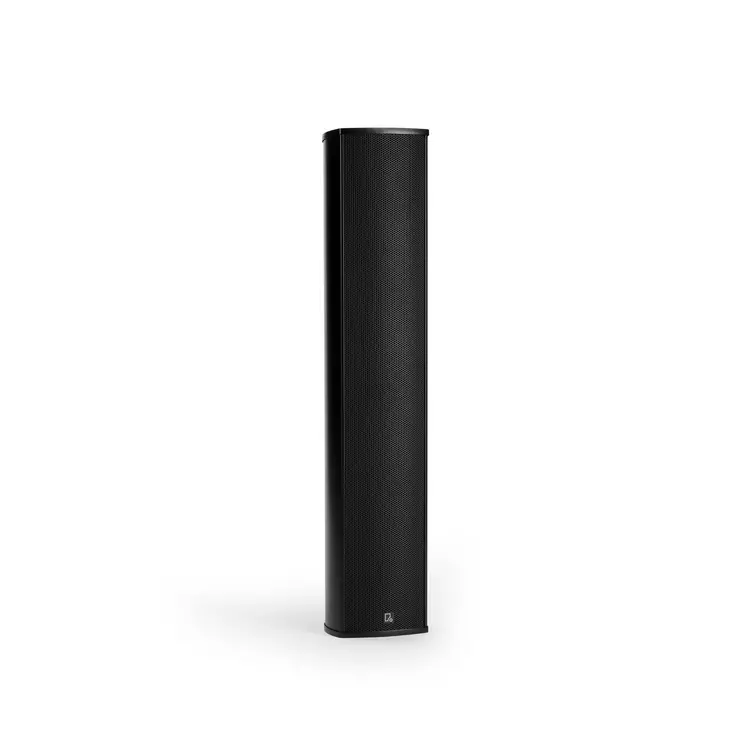

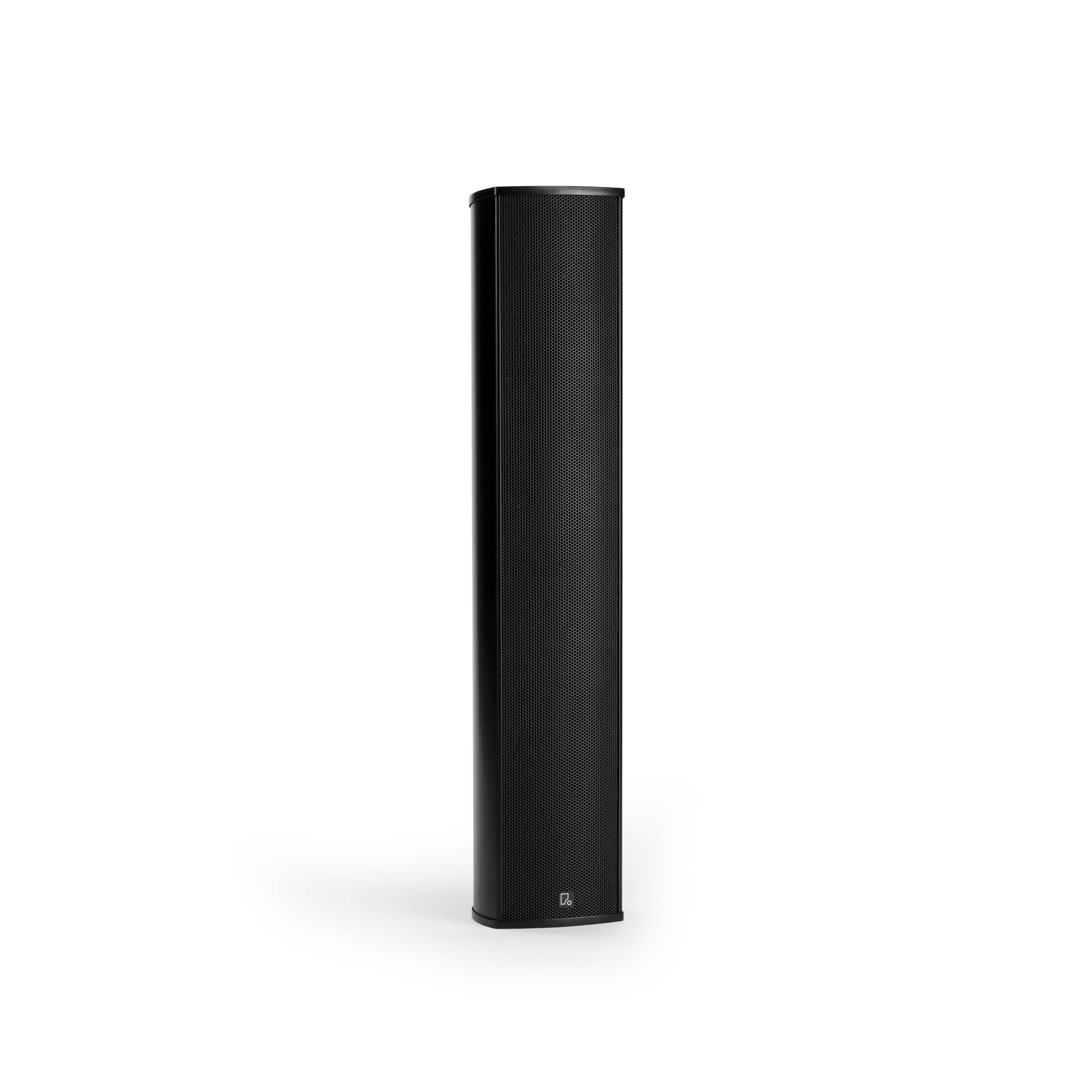

LS-2 er en subwoofer med et slankt designkabinet. Fohhn Sub Extension-systemet og de kraftfulde 4" long excursion drivers garanterer en fyldig og overbevisende basgengivelse. Med alle Fohhn line source højttalere, som også har et T-slot-kabinet, kan den integreres visuelt perfekt i en linje.

2 × 4" long excursion driver og 2 passive enheder
Nominel effekt: 100 W
Maks. Lydstyrke: 106 dB
Fleksibel montering takket være gennemgående T-not bagpå
Dimensioner: 133 × 655 × 128 mm
Vejrbestandig i henhold til IP54 med Cable Gland Set
Bemærk! Højttaleren kan kun benyttes med Fohhn systemforstærkere og den korrekte højttalerindstilling.

Varenummer: 4401-XXXXX

Downloads

Downloads LS-2

ZIP-arkiv

Udbudsspecifikation

Tekniske data

Technical data

Physical features

enclosure

aluminum

dimensions (w × h × d)

133 mm × 655 mm × 128 mm

weight

4.7 kg

front design

front grille with acoustically transparent 3D mesh fabric behind it

standard colors

black (RAL 9005), white (RAL 9016)

coating

powder coated

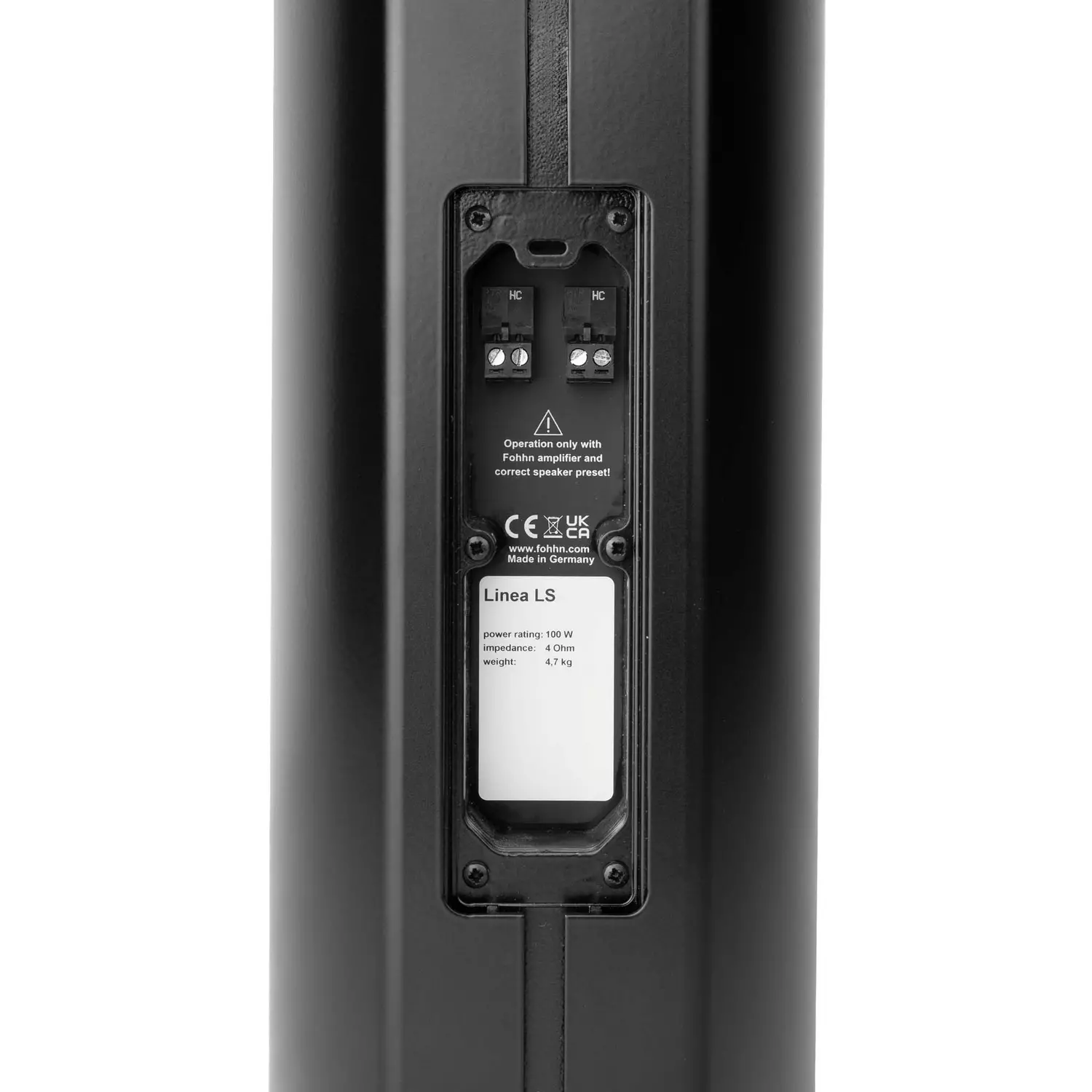

connectors

2 × 2-pin terminal block (for flexible and rigid conductors up to 3.3 mm²)

mounting points

continuous T-slot at the rear

Electroacoustic features

Environmental conditions

Optional features

CAAD simulation data

weight: net weight without optional equipment
IP code: according to IEC 60529/ EN 60529
power rating (nominal): according to IEC 60268-5 (long term)
SPLmax: peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range
cut-off frequency: −10 dB under anechoic half-space conditions, with speaker preset
