LEN-150

Farver

Main features

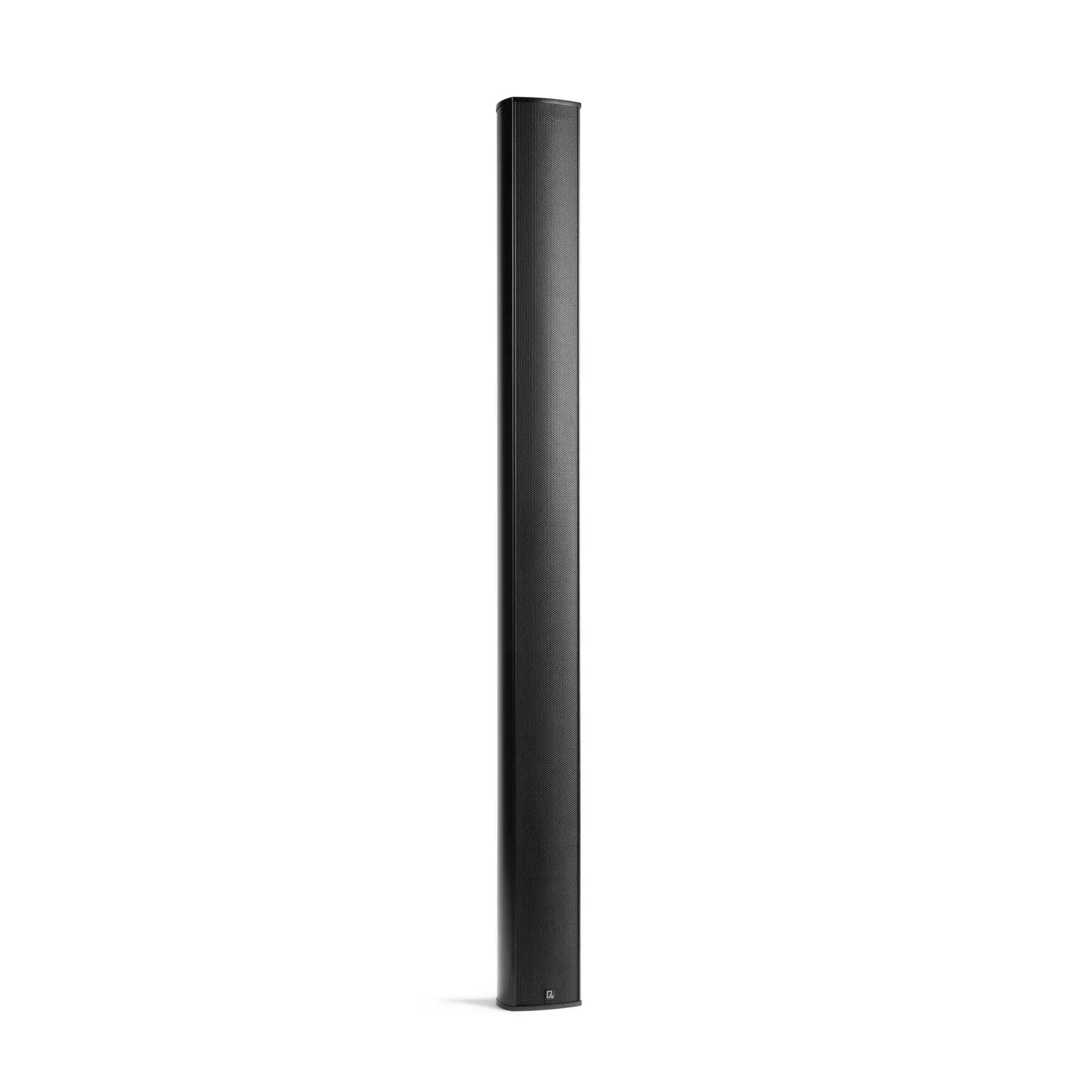

LEN-150 er en passiv 100 volt line source højttaler, der er certificeret i henhold til EN 54-24 type B til brug i varslingssystemer. Som alle produkter i Voice Alarm -serien er den udstyret med et vejrbestandigt, stålforstærket aluminiumshus, hvilket gør den lige velegnet til indendørs og udendørs brug. LEN-søjlehøjttalerne garanterer fremragende taleforståelighed og lang rækkevidde selv i vanskelige akustiske miljøer.

12 × belagt 4" chassis
Jævn dækning og spredning
Undertrykkelse af uønskede sidelober takket være Fohhn Source Division Waveguide
IP65 med monteret »kabelforsnæringssæt« (medfølger), i overensstemmelse med EN/IEC 60529

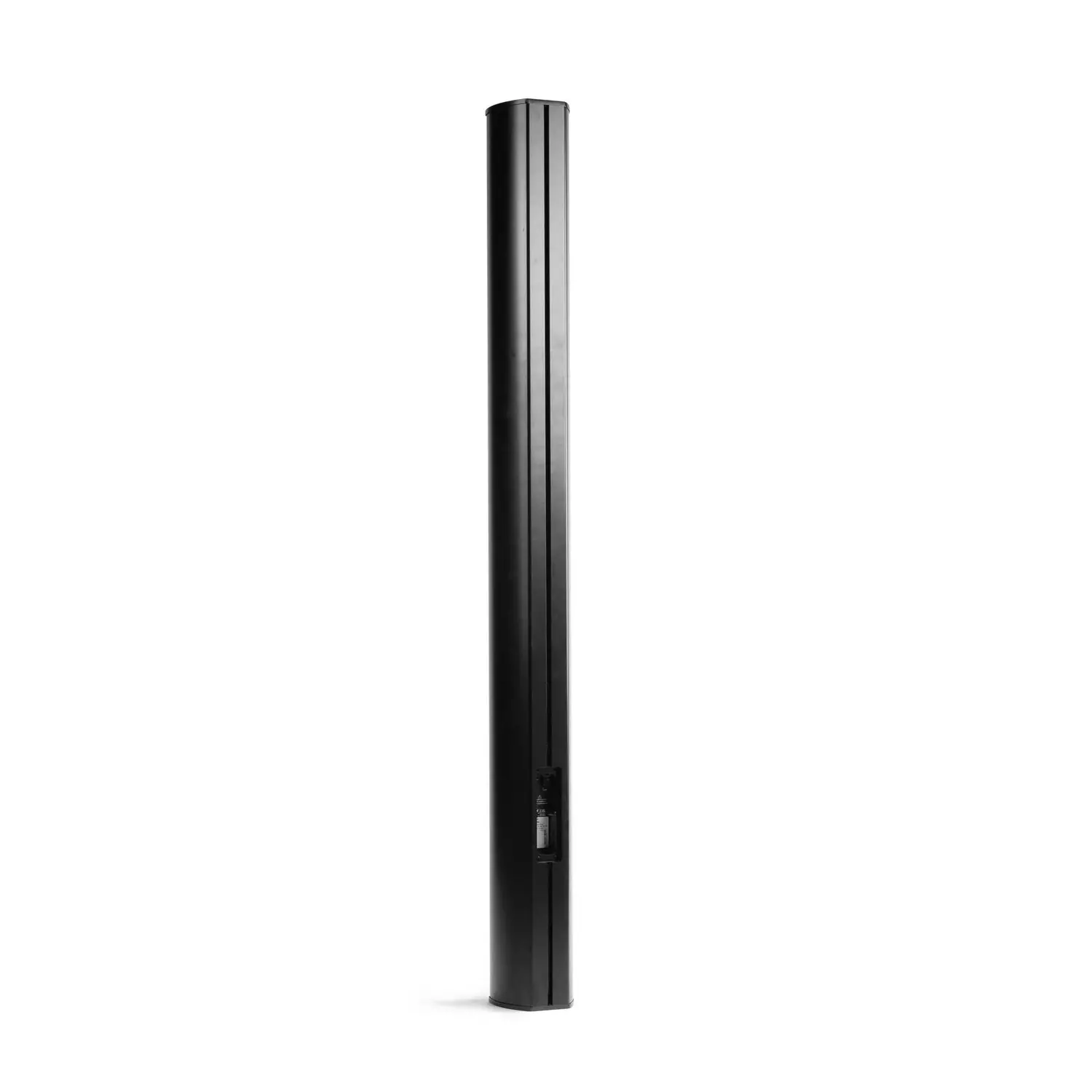

Det er nyt: Fleksibel montering takket være T-sporet på bagsiden
Fås i forskellige farver (RAL Classic, Pantone, NCS) eller med Fohhn Texture Design
For at sikre optimal ydeevne og driftssikkerhed er det nødvendigt med Fohhn systemforstærkere med den korrekte højttalerindstilling.

Varenummer: 1809-XXXXX

Downloads

Downloads LEN-150

ZIP-arkiv

Brugervejledning

Tekniske data

Technical data

Physical features

enclosure

aluminum

dimensions (w × h × d)

133 mm × 1465 mm × 128 mm

weight with transformer S

12.5 kg

weight with transformer M

13 kg

weight with transformer L

14.5 kg

front design

front grille with acoustically transparent 3D mesh fabric behind it

standard colors

black (RAL 9005), white (RAL 9016)

coating

powder coated

connectors

2 × 2-pin terminal block (for flexible and rigid conductors up to 3.3 mm²)

mounting points

continuous T-slot at rear

certificates

EN 54-24 type B

Electroacoustic features

acoustic design

passive line source speaker system, closed, passive 2-way CD crossover and filter, suppression of side lobes by Source Division Waveguides

components

12 × 4" drivers

transformer options, power rating acc. to EN 54-24, 100 V (transformer S)

65 W

transformer options, power rating acc. to EN 54-24, 100 V (transformer M)

130 W

transformer options, power rating acc. to EN 54-24, 100 V (transformer L)

260 W

impedance tap at 100% with transformer S

154 Ω

impedance tap at 100% with transformer M

77 Ω

impedance tap at 100% with transformer L

38 Ω

impedance tap at 50% with transformer S

308 Ω

impedance tap at 50% with transformer M

164 Ω

impedance tap at 50% with transformer L

77 Ω

impedance tap at 25% with transformer S

615 Ω

impedance tap at 25% with transformer M

308 Ω

impedance tap at 25% with transformer L

154 Ω

sensitivity acc. to EN 54-24

86 dB

SPLmax acc. to EN 54-24 (transformer S)

100 dB

SPLmax acc. to EN 54-24 (transformer M)

103 dB

SPLmax acc. to EN 54-24 (transformer L)

106 dB

nominal dispersion (h × v)

130 ° × 14 °

directivity (h × v) (octave band) acc. to EN 54-24 @ 500 Hz

360 ° × 35 °

directivity (h × v) (octave band) acc. to EN 54-24 @ 1000 Hz

190 ° × 20 °

directivity (h × v) (octave band) acc. to EN 54-24 @ 2000 Hz

120 ° × 14 °

directivity (h × v) (octave band) acc. to EN 54-24 @ 4000 Hz

95 ° × 8 °

Environmental conditions

Optional features

CAAD simulation data

weight: net weight without optional equipment
IP code: according to EN/IEC 60529
impedance 100 / 50 / 25 % tap: measured at a voltage producing 1 W per loudspeaker system
sensitivity in acc. to EN 54-24: at 1 W/ 100 V, maximum sound pressure level (SPLmax), measured in the far field of the loudspeaker, standardized to a distance of 4 m
100 V, measured in the far field of the loudspeaker, standardized to a distance of 4 m
nominal dispersion: −6 dB compared to the main dispersion axis, averaged 1 – 4 k
